Max. Turning Diameter: 11"
Max. Turning Length: 11.8"
Distance Between Centers: 20"
Max. Bar Capacity: 1.75"
Swing Over Bed: 18"
Chuck: 8" 3-Jaw
Spindle Nose: A2-5
Spindle Speed: 35 - 5000 RPM
Spindle Motor: 15 HP

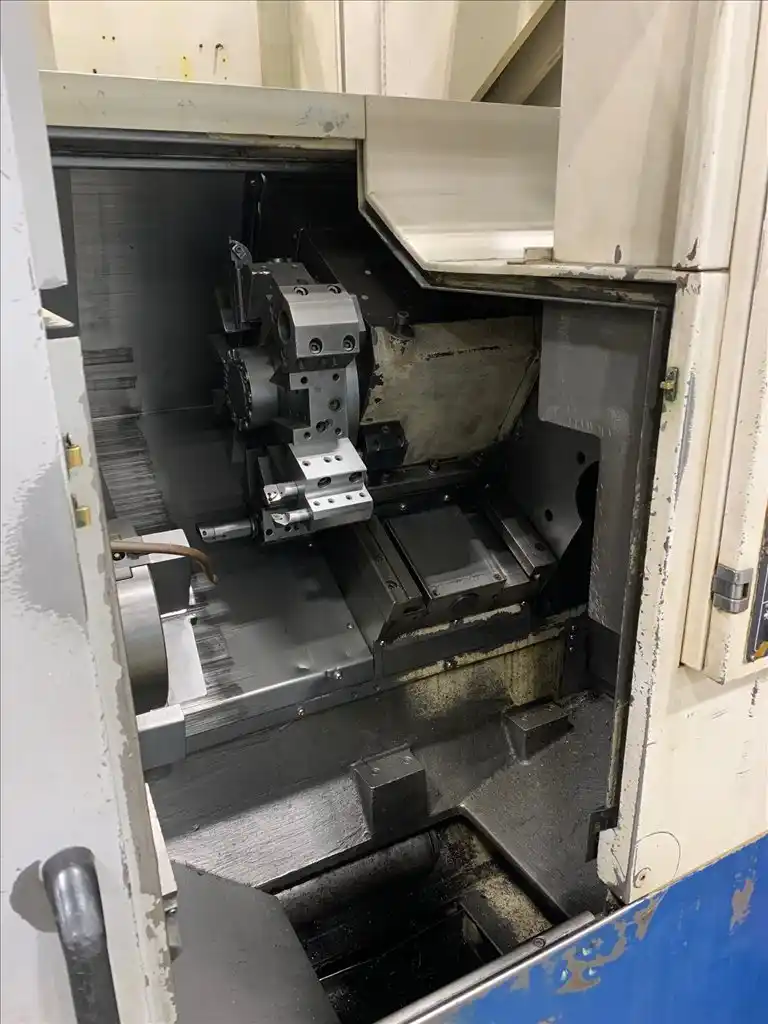

Number of Turret Stations: 12
X-Axis Travel: 6.3"
Z-Axis Travel: 13"
Rapid Traverse (X-Axis): 787 IPM
Rapid Traverse (Z-Axis): 945 IPM
Show Less
Equipped With

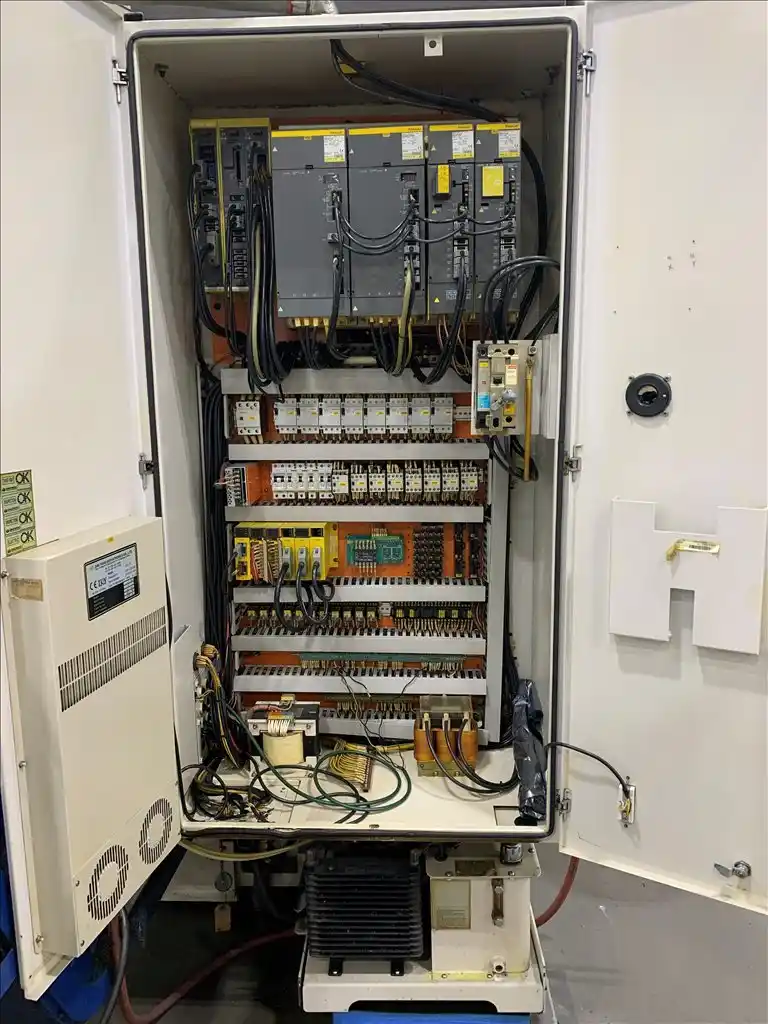

Fanuc 21-T Series CNC Control
Rigid Tapping

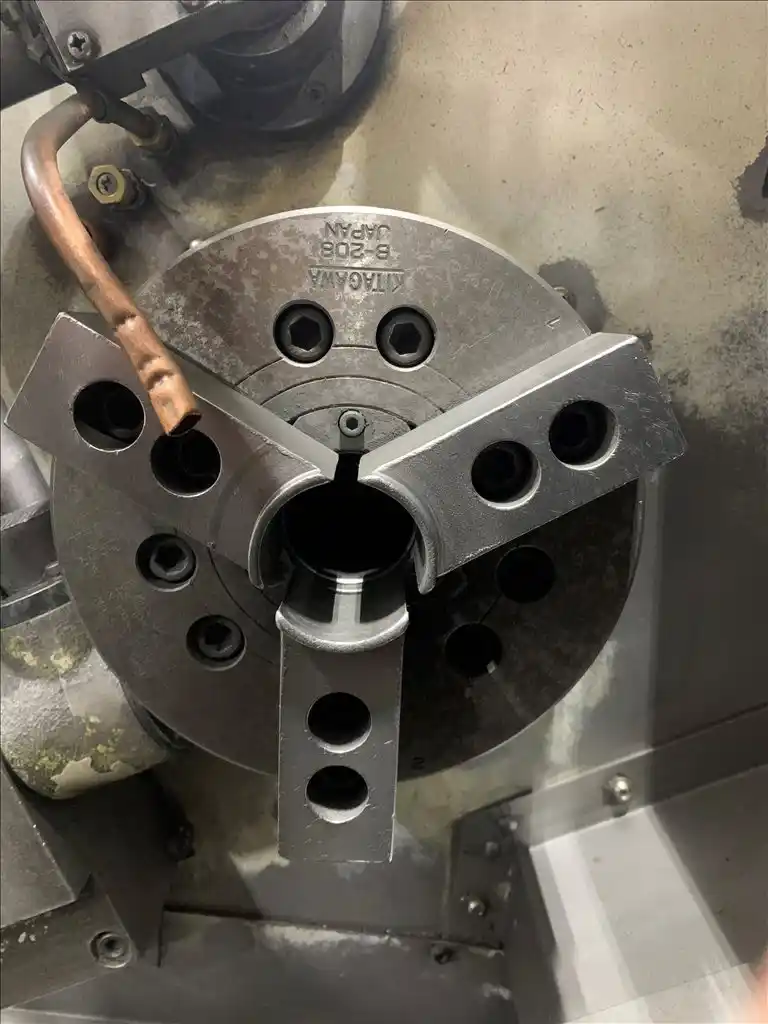

B-208 Kitagawa Hydraulic Chuck
Tool Presetter
Parts Catcher
RS-232
Coolant System
Turbo Chip Conveyor
Foot Switch
Additional Steel Chuck Jaws
Disclaimer
Preliminary specifications are provided for general guidance only and may change without notice.
They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities,
weights, and performance figures should be independently verified by the buyer prior to purchase or use.
Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness,
accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
