New - Never Used In Production
Max. Load Capacity at Wrist: 99 lbs
Reach: 103"
Controlled Axes: 6
Repeatability +/- 0.24"
Motion Range
J1: 360°
J2: 225°
J3: 440°
J4: 800°
J5: 250°
J6: 800°
Maximum Speed
J1: 180°/s
J2: 180°/s
J3: 180°/s
J4: 250°/s
J5: 250°/s
J6: 360°/s
Equipped With

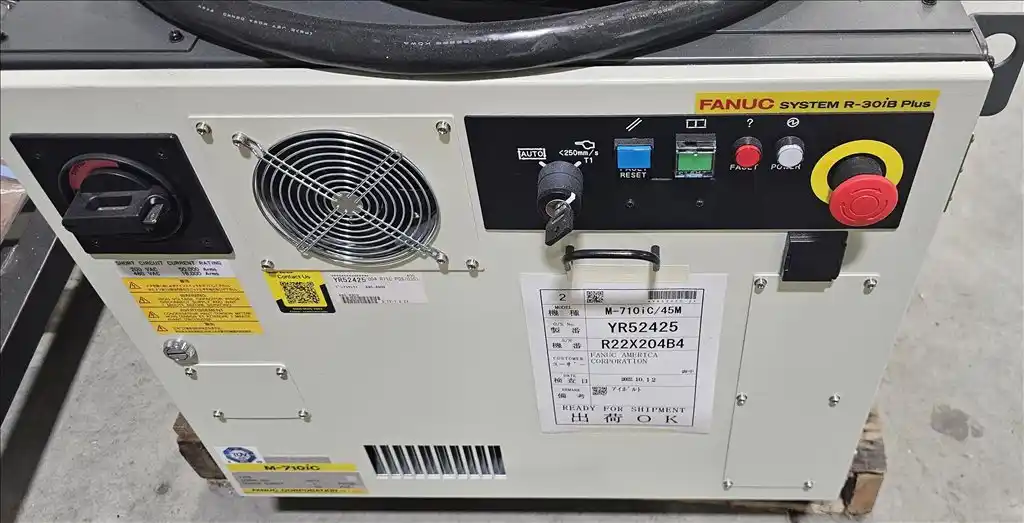

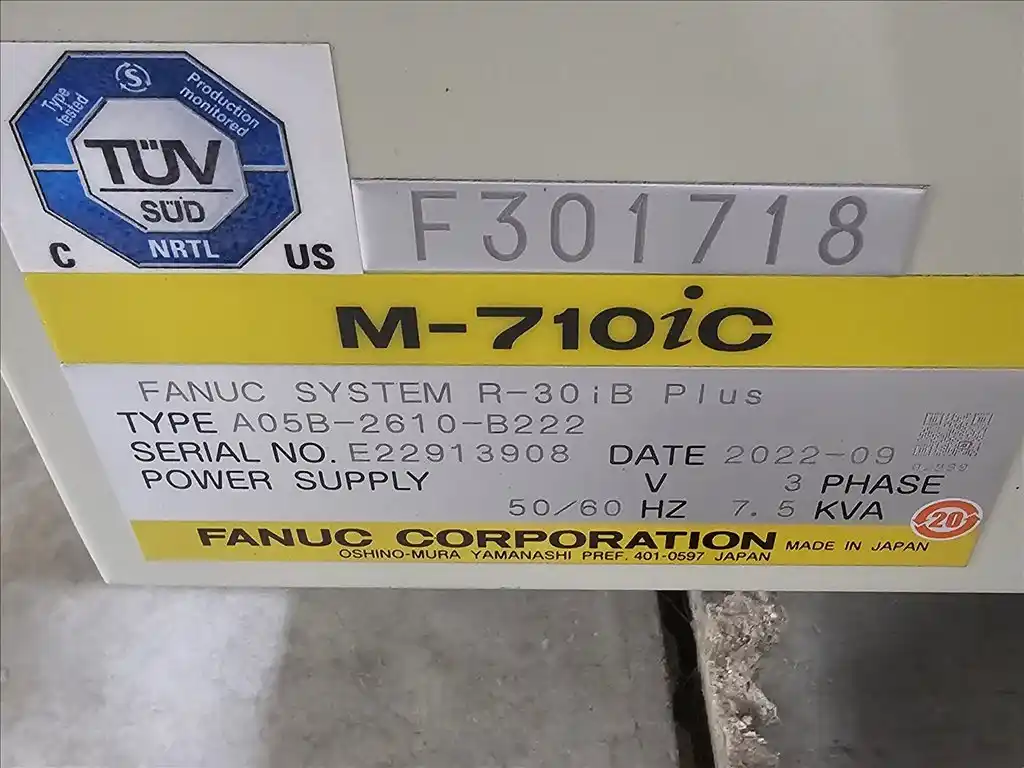

R-30iB Controller
Disclaimer
Preliminary specifications are provided for general guidance only and may change without notice.
They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities,
weights, and performance figures should be independently verified by the buyer prior to purchase or use.
Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness,
accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
