Machine Specifications

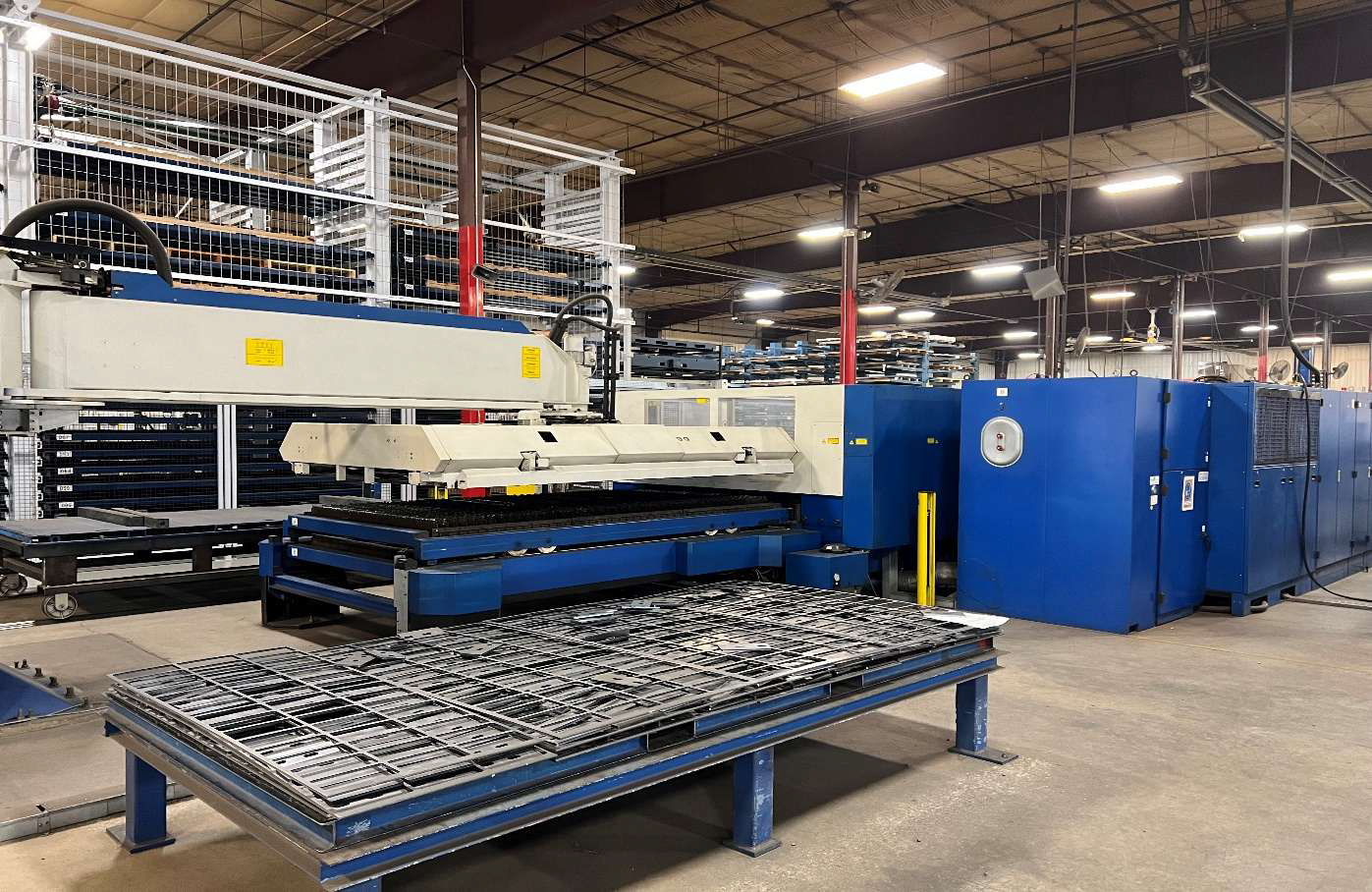

2004 Trumpf TruMatic L-3030 CNC Laser Cutting System with LiftMaster Automation
4000-Watt CO2 Laser System
The Trumpf TruMatic L-3030 is a heavy-duty CNC laser cutting system designed for precision sheet metal processing in fabrication and manufacturing environments. This system features a 4000-Watt Trumpf CO2 resonator, Siemens control, and an integrated Trumpf LiftMaster automatic load/unload system for increased productivity and reduced material handling time.
This machine was purchased new by the current owner in 2004, with ownership verification available through Trumpf serial number records. Internal and Trumpf maintenance records are available. The system was professionally decommissioned by a Trumpf-authorized technician and includes available spare parts.
Machine is currently disconnected from power but was professionally taken offline.
Specifications:
Manufacturer: Trumpf
Model: TruMatic L-3030
Year: 2004
Laser Type: CO2 Laser
Laser Power: 4000 Watts
Control: Siemens CNC Control
Automation: Trumpf LiftMaster Load/Unload System
Working Capacity:
X Axis Travel: 120"
Y Axis Travel: 60"
Z Axis Travel: 5"
Maximum Sheet Weight: 1,562 lbs
Performance:
Beam On Time: 37,506 Hours
Laser On Time: 70,659 Hours
Maximum Positioning Speed (Axis Parallel): 2,400 IPM
Maximum Positioning Speed (Simultaneous): 2,240 IPM
Smallest Programmable Increment: 0.0004"
Machine Dimensions:
Length: 366"
Width: 181"
Height: 79"
Approximate Weight: 25,300 lbs
Equipped With:
Siemens CNC Control
4000-Watt Trumpf Resonator
Trumpf LiftMaster Automation
Chiller
Dust Collector
Available Spare Parts Included (as available)
Additional Information:
Purchased new by current owner
Ownership traceable through Trumpf serial records
Internal maintenance records available
Trumpf service history available
Software/license not transferable
Professionally decommissioned by Trumpf-authorized technician
Machine located near loading dock with crane access
Seller can provide crane and loading dock access only
Buyer responsible for rigging, disassembly, and transportation
Rigger recommendations available upon request
Machine is currently offline and not under power. Inspection arrangements may be available by appointment.
